Q350 ERV with 10-port Manifold

The choice for large residential and small commercial projects or schools, the CA Q350 has a maximum capacity of 208 cfm.

The CA Q350 has all the features of the original ComfoAir series with advanced control system technology and more efficiency in the heat transfer core. Additional options and accessories are also available.

The CA Q350 is a Certified Passive House Component.

Benefits:

• Comfort Ventilation up to 208 cfm
• Heat recovery efficiency up to 92%
• Advanced connectivity and control options, including smart phone app
• LowPressure monitoring to maintain commissioned flow rates (Self Balancing)
• Low power consumption thanks to EC direct current motors
• Automatic summer bypass
• Frost Protection Function
• Quick and safe installation, maintenance and servicing
• Moisture recovery with the Zehnder enthalpy exchanger
• Simple operation
• Optional integrated preheater
• Filter replacement indicator
• Passivhaus Institut accredited

Dimensions: Height: 34”

                        Width: 31”

                        Depth: 23.5”

Weight: 110 pounds

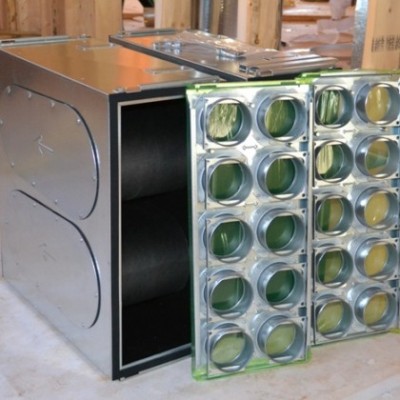

Compact sound-absorbing manifold box with closed-cell, silencer inner lining, with mounting plate for 6x3" (75) ComfoTube ventilation pipes and end plate with 6.3" connection for ComfoPipe.

ComfoWell Material: Galvanized steel

ComfoWell Dimensions:

Length: 21.7"
Width: 9"
Height: 20"
