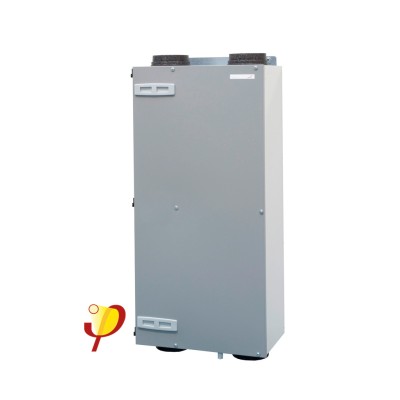

ComfoAir 200 Ventilation Unit with pre-heater

Designed for excellent efficiency and installation in smaller homes or apartments (~2 bedrooms, 2 baths), the CA 200 ERV is suitable for wall or ceiling mount.

With a maximum capacity of 118 cfm, the CA 200 has been certified at 84% efficiency by the Passive House Institute.

Features include ECM motors for energy efficiency and ease of balancing, summer bypass cooling, frost protection mode, and resistance pre-heater. Additional options and accessories also available.

Benefits:

• Comfort ventilation up to 118 cfm
• Heat recovery with a heat recovery efficiency of up to 84% according to PHI
• Low power consumption thanks to EC direct current motors
• Automatic 100% summer bypass
• Infinitely variable frost protection function: efficient even at low temperatures
• Quick, safe installation and servicing
• Simple operationIntegrated preheater
• Digital control unit
• CO2 control (optional)
• With weekly timer as standard
• Chimney sweep control
• HVI Listed
• The CA 200 is a Certified Passive House Component

Dimensions:Height: 47.2”

                        Width: 21”

                        Depth: 12.6”

Weight: 66.2 pounds (30kg)

User Manual
